Fully Automatic Telescopic Seating System

Stepped audience seating, with fully automated opening and closing Moveable seating for a broad range of uses, from theatres to arena

Iwamin Hall

EX THEATER ROPPONGI

Shikokuchuo City Civic Cltural Hall Lesser Hall

Multipurpose Hall, Kaichi Nihonbashi Gakuen Junior School and Nihonbashi Jogakkan High School

NITech Hall, Nayoga Institute of Technology

About the structure of fully automatic model

Expansion and storage using the fully automatic model

The expansion and storage of seating system is performed using a remote switch. The raising and lowering the seats are too.

Remote Switch

Elgala Hall

Safe design to prevent accidents and incorrect operation

Each component is fitted with safety devices to ensure the equipment can be operated easily and efficiently. When an extending or retracting operation has not been carried out properly, operation pauses and a status message is displayed on a remote device, together with guidance on how to handle the problem appropriately

  1. Minimizing vibration
    The structure is specifically designed to minimize vibrations in both the up-and-down and forward-and-back directions as people walk across the structure.
  2. Removable side rails
    When the seating is retracted, the removable side rails along the last few rows are removed. If someone forgets to remove the side rails and the retracting operation is performed with them still attached, the retracting operation is automatically paused.
  3. Seat fold-down operation
    If belongings or other items are on the deck of the unit, and impede the seating folddown operation, a status message is displayed.
  4. Sensor-equipped front panel
    If sensors on the front panel detect an obstacle that would impede the advance of the unit, the extending operation is paused to prevent accident or breakage.
  5. Upper level aisle doors
    An interlock mechanism prevents the doors from opening or closing when the unit is retracted. The system is designed so that the unit can only be extended or retracted when the doors are locked. (Requires co-ordination with the architect and builder.)
  6. Connector box
    When the hand-held controller is connected to the connector box, the audio guidance will begin. If an error occurs, the problem is displayed on the screen. Most errors can be easily resolved by following the instructions displayed.

One of the world’s best systems for straight opening

Using a non-friction drive system, drive links extend to open the rows meaning no direct load is placed on the floor.The responsive drive links are able to extend the unit perfectly straight, adjusting to maintain flawless alignment. Thisreduces wear and tear on the unit, giving smooth, trouble free operation and extending the life-expectancy of the system.

2 different types of load dispersal system can be used depending on the circumstances

Drum Unit (DU) non-friction drive system

A drive link wound up around the drum unit is connected to the first row of the retractable seating. By rotating the drum with a motor and moving the drive link in and out horizontally, the extending or retracting operation is performed. As there is no impact from the floor, travel is in a straight line and even possible over ice. Recommended number of levels: 10 or more

6-Wheel Drive (6WD) drive dispersion system

The seating is extended and retracted using a single motor to drive six distributed wheels. Grip to the floor is across a wider area, minimizing the impact on the floor construction. This design also provides straight alignment of the system, giving smooth, trouble-free operation and increasing longevity. Recommended number of rows: Up to 10

Standard Specifications

The standard specification includes the following features.

*Options to enhance the facility depending on its use or purpose.
Please inquiry for more information.

Click each number for details

Self-storing side rails

This design considers safety all the way down to people’s feet. The handrails feature a flat and streamlined finish that blends seamlessly with the unit.

Removable side rails

When the seating is retracted, the removable side rails along the last few rows are removed. If someone forgets to remove the side rails, and the retracting operation is performed with them still attached, the retraction is automatically paused.

Hinged steps

The steps are rotated and stowed on the first row platform. As the steps do not move when people step on them, they can be walked over safely.

Fixed steps

Fixed steps are installed along the front-to-back aisles to make it easy for people to walk to their seats, and are set to half the depth of each level. The steps help to maintain a constant walking rhythm.

Sensor-equipped front panel

If sensors on the front panel detect an obstacle that would impede the advance of the unit, the extending operation is paused to prevent accident or breakage.

Aisle lighting (LED)

For audience convenience and safety, aisle lighting is provided in the armrest to the right or left of each aisle as standard. The LED lamps emit discrete, diffused lighting over a wide area, so that they do not produce glare even when viewed from the stage.

Side guard panels

The side guard panels prevent spectators and foreign objects from transgressing underneath the unit. The panels are a high quality design, composed of aluminum sandwich panels.

Variations

Wall Attached Model

With this model, the unit is attached to the rear wall. A storage recess is not required.

■D (Row Depth)=900,950  ■H (Row Rise)=200,230,250,280

Sanso Study Center CHAOS

Recessed Model

The unit is retracted into a recess, and is stored flush with the recess front wall.

■D (Row Depth)==900,950  ■H (Row Rise)=200,230,250,280

Small Hall, Yasugi General Culture Hall ARUTEPIA

Laser Guided Travelling Model

This system is designed to allow multiple venue layouts and fast, straightforward reconfigurations. The whole closed seating unit moves forward from its storage position using a laser system that automatically guides the direction of travel. During movement, the unit tracking is fully controlled by the automatic guidance system.

■D (Row Depth)=900,950  ■H (Row Rise)=200,230,250,280

FCP (Illustration shows the model deployed near the stage)

The seats are folded down and stowed inside the stage. This system can be used in conjunction with retractable seating to increase multi-purpose options.

D (Row Depth)=950
()dimensions depends on the seat

Multipurpose Hall, Kaichi Nihonbashi Gakuen Junior School and Nihonbashi Jogakkan High School

FCP(Illustration shows the model deployed away from the stage)

The seats are folded down and stowed inside the stage. This system can be used in conjunction with retractable seating to increase multi-purpose options.

■D (Row Depth)=950
*()dimensions depends on the seat

About the seats for the fully automatic model

Seats for Fully Automatic Telescopic Seating System Type p

Featuring a classic shape crafted from lavish amounts of real wood, and luxuriously plush cushioning. Provide your audience with the ultimate experience with this seat’s enhanced quality and design.

While these seats are designed to be used on retractable platforms, their development was based on new standards, and they provide the same quality and comfort as traditional seating. This high specification seat is perfect for professional theatres and performance halls. With its refined design, this style complements any elegant theatre space.

Type p [Upholstery KW-44 / Wood PW-320]

See for more details

The beautifully curved, elegant and substantial timber backrest has been equipped with luxurious, thick cushioning materials to provide comfortable upper body support.

The armrests convey the depth and warmth of real timber, and bear all the hallmarks of an auditorium chair.

With built-in serpentine springs, the seats have the same structure as a fixed-type auditorium chair. This marks a departure from traditional retractable spectator seating and delivers the ultimate in comfort.

Seats for Fully Automatic Telescopic Seating System Type LW / L

These seats feature thick cushions, and three dimensionally shaped backs to support the user. With a simple form lending a sense of refined relaxation, these seats would work well for a training, corporate or government facility, or for a school which hosts numerous ceremonies and lectures.

Type L has a seat panel is upholstered on all sides, whereas Type LW has natural wood panels underneath the seat pan and on the outer side of the back. The seat cushion was designed for comfort, and is twice as thick as the cushion in the standard seat.

Type L [Upholstery KF-36 / Wood KSW-05]

See for more details on Type L

Type LW [Upholstery KF-36 / Wood KSW-05]

See for more details on Type LW

The three-dimensional backrest shape provides full upper-body support.

The armrests are made with good quality solid wood giving high grade specification.

To maximize comfort, the seat cushions boast twice the thickness of those used in our Type 5R series.

Seats for Fully Automatic Telescopic Seating System Type 5ATR / 5R / S

Three models are suitable for all kinds of venues, from multi-purpose halls to school lecture halls and gymnasiums. The standard series is the most frequently chosen option from our lineup.

Type 5ATR [Upholstery KW-38 / Wood KSW-05]

See for more details on Type 5ATR

Type 5R [Upholstery KF-27 / Wood KSW-05]

See for more details on Type L

Type S [Upholstery KSF-01]

See for more details on Type S

Gentle seat tip-up mechanism
As the audience vacate their seats, the gentle seat tip-up offers silent, vibration-free closing.

Compatible Chair: Type 5R, Type 5ATR

Gentle seat tip-up mechanism
As the audience vacate their seats, the gentle seat tip-up offers silent, vibration-free closing.

Compatible Chair: Type 5R, Type 5ATR

Seat Options

Rotating Writing Tablet for Classes with Notetaking T1

When writing in a notebook, the side writing tablet attached to the armrest can be rotated out for use. Even when the side writing tablet is used, the same front to back measurements as normal can be used.

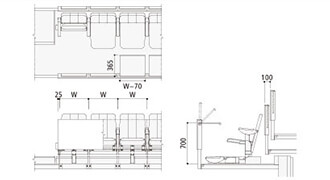

A Table for Laptops TB (Delte)

This system features a slimline desk without a storage housing, allowing ample room in front of and behind the seats, and enabling easy passage. This system is especially useful in multipurpose spaces hosting classes,

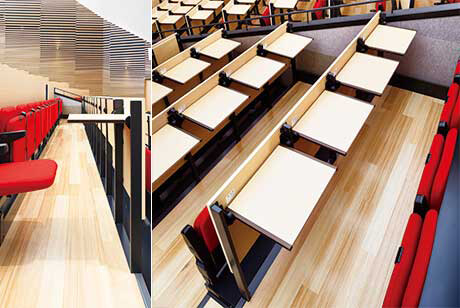

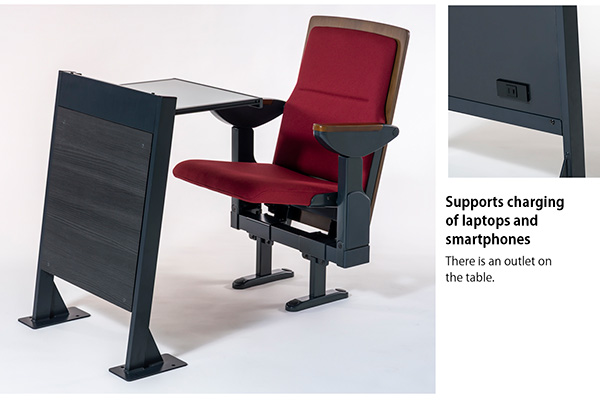

A Table which can fit A2 Size Paper TB (Elegante)

This desk slides slowly back into its housing, preventing pinched fingers and other accidents. This solution is great for spaces where tables will be in frequent use, such as multipurpose classrooms or seminar rooms.

Case Studies

Renewed:Sep, 2019 Seats:223
Opened:Sep, 2017 Seats:606
Completed:Aug, 2019 Seats:98
Completed:Apr, 2019 Seats:1,600
