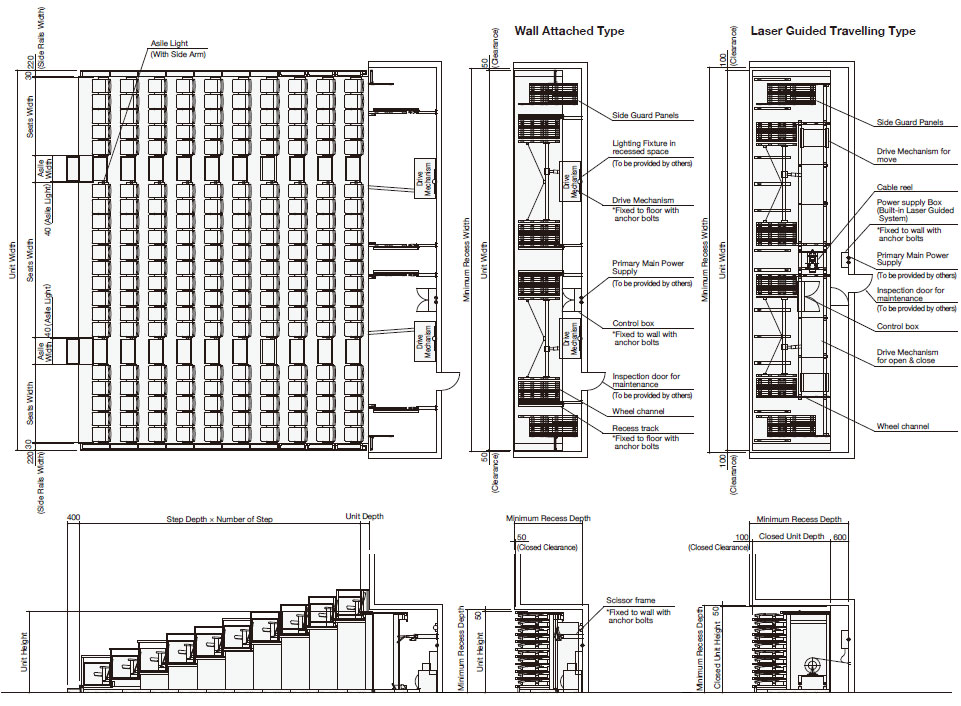

Fully Automatic Telescopic Seating Layout

Seating in performance facilities such as theaters and halls requires layouts that conform to the laws and regulations of each country.

Unit Width

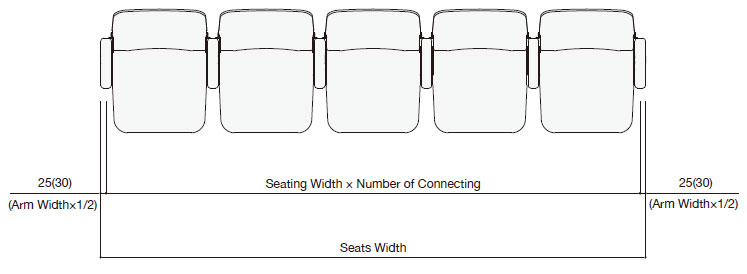

Width of Seating Bank
Width of Seating Bank = Individual Seat Width × Number of Connecting Seats + 50mm

Aisle Width
Conform to the laws and regulations of each country.

Side Rail Width
220mm (One Side)

Chair Without Rotating Writing Tablet

Chair Type Seating Width (mm)
480 500 520 540
P ○ ○ ○ ○
L・LW ○ ○ ○ ○
5R ○ ○ ○ ー
5ATR ○ ○ ○ ー
S ○ ○ ○ ー

Chair With Rotating Writing Tablet (Model T1)

Chair Type Seating Width (mm)
480 500 520 540
P ー ー ー ー
LT1・LWT1 ○ ○ ○ ○
5RT1 ○ ○ ○ ー
5ATRT1 ○ ○ ○ ー
ST1 ○ ○ ○ ー

Minimum Recess Depth

*The values indicated in the table are minimum values and will change depending on project size and setting conditions.

Step Depth Recess Type Forward Moving Model
Drum Unit (DU) 6-Wheel Drive (6WD)
900 2250 2150 3300
950 2300 2250 3350

Level Difference

○…Model Without Rotating Writing Tablet
●…Model With Rotating Writing Tablet

Chair Type Level Difference (mm)
200 230 250 280 320
P ー ー ー ー ○
L・LW ー ー ○ ● ー
5R ○ ● ● ● ー
5ATR ○ ● ● ● ー
S ○ ● ● ● ー

Minimum Recess Depth

Unit Height =First Step Height + Level Differences × (Number of Step-1)+*

*Folded chair height if chairs are installed on the rear platform. Number of platforms and row rise are determined based on the dimensions of the building or the total number of seats required. Also note that the minimum row rise differs depending on the chair type. Row 1 row rise: 200mm or 250mm

Row Depth

Chair Type Row Depth (mm)
900 950
P ー ○
L・LW ○ ○
5R ○ ○
5ATR ○ ○
S ○ ○
